Product Description

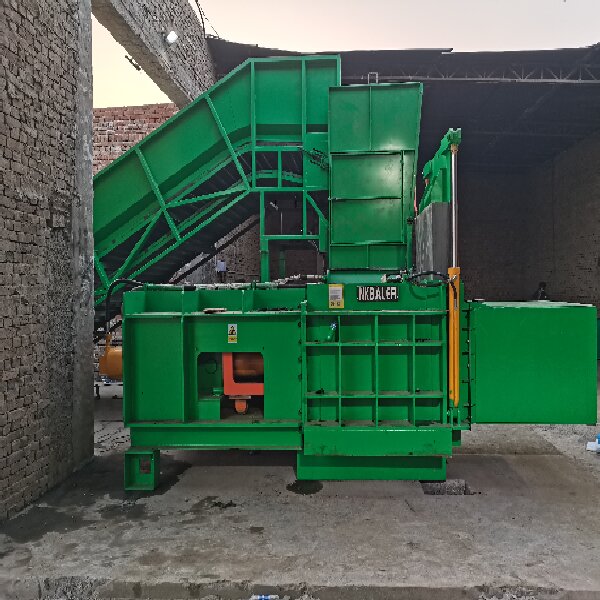

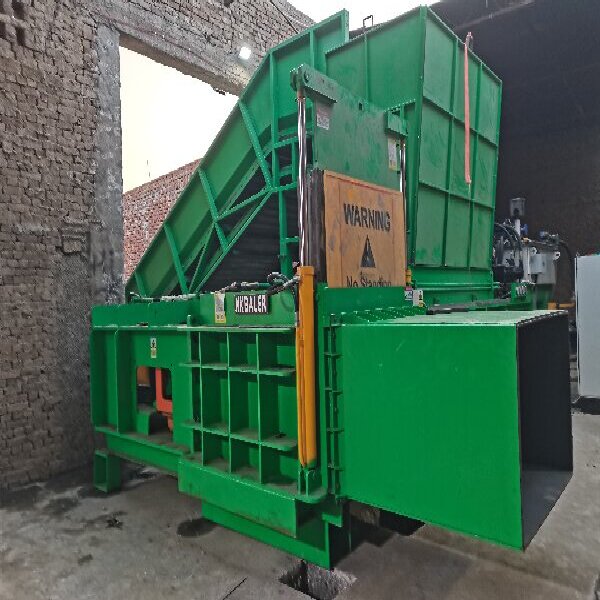

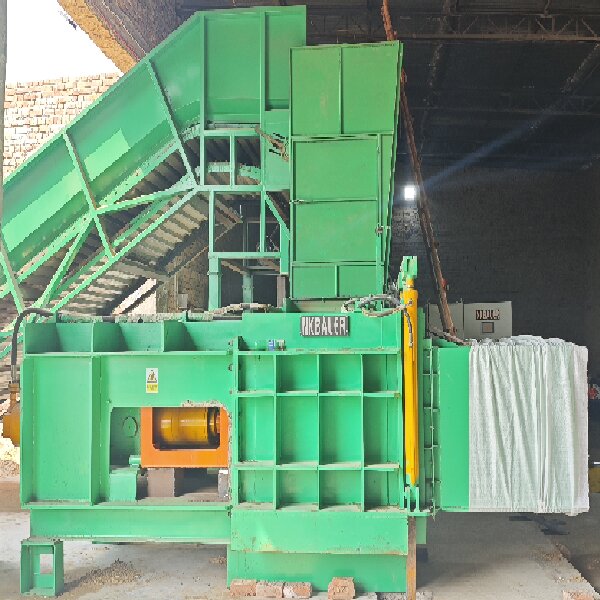

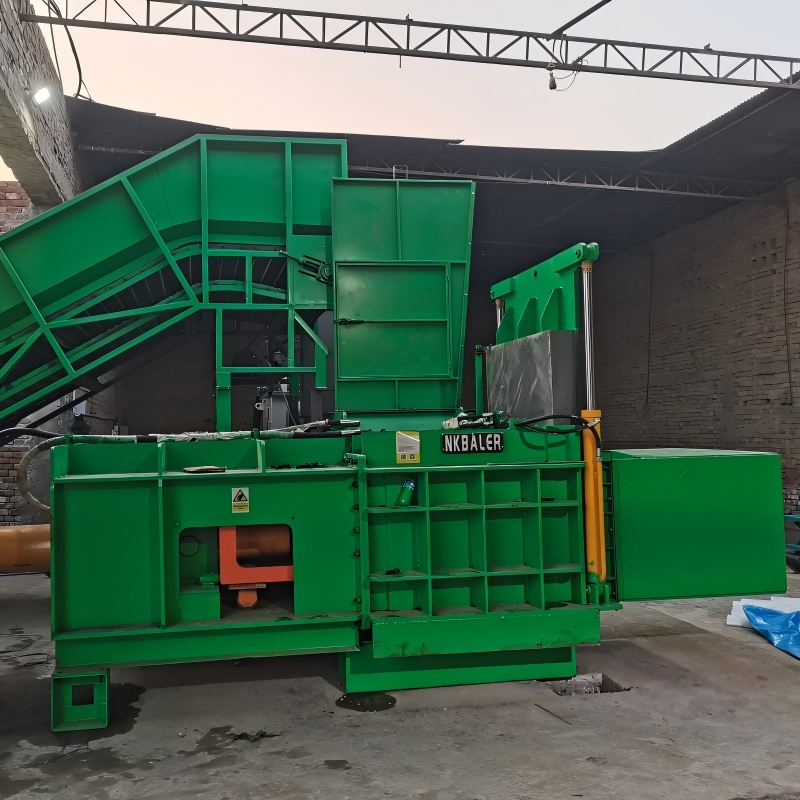

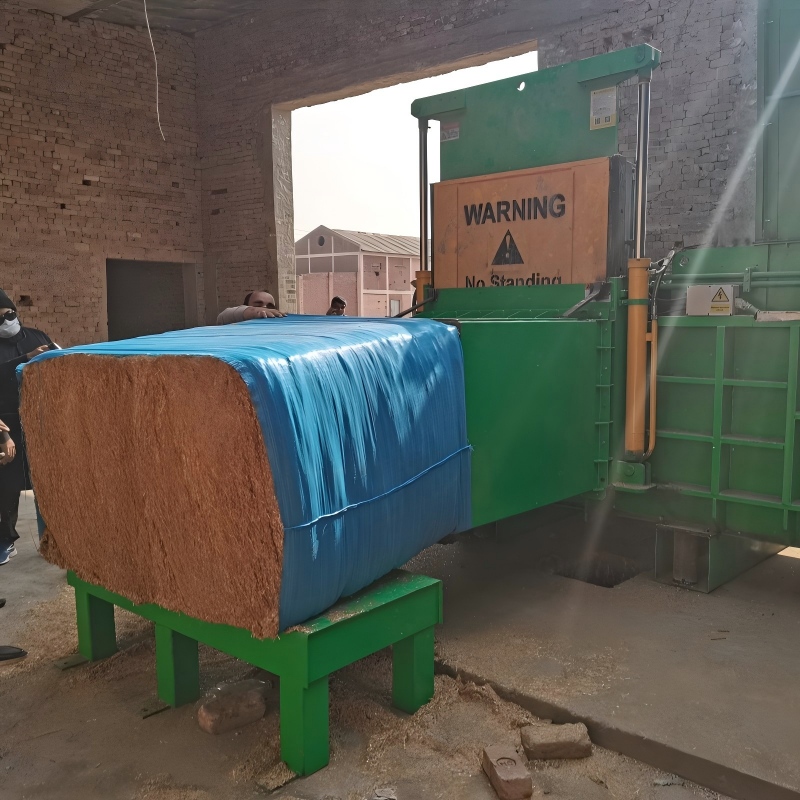

NKB280-3 Twin Ram Hydraulic Baler (55kW) represents the high-performance solution in the NKB280 series. With a reinforced twin ram hydraulic structure and increased motor power, the machine ensures rapid and stable compression of loose agricultural materials, producing dense and uniform bales suitable for long-distance transportation and container loading.
To meet different production requirements, the NKB280-3 supports customized baling capacity and customized bale dimensions, allowing users to adapt the machine to specific materials, logistics conditions, and site layouts. Built with a heavy-duty steel frame and reliable hydraulic components, it is designed for long-term, high-load operation.
Video
Key Features
●High-power twin ram hydraulic system for fast and stable compression
●55kW motor enables high-speed baling and maximum productivity
●ustomizable capacity to match different production demands
●Optional bale size customization for optimized storage and transport
●Heavy-duty structure suitable for continuous agricultural and biomass use
NKB280-3 Specification
|
Name |
parameter |
|
Bale size |
1050mm（W）×1250mm（H） |
|
Material type |
Wheat straw, Hay Alfalfa, Grass |
|
Material density |
300～400kg/m3 |
|
Feed opening size |
2600mm×1100mm |
|
Main motor power |
55kw |
|
Main cylinder |
YG350-4300 |
|
Capacity |
7-9ton /hour |
|
Main cylinder force |
280T |
|
Max. Pressure |
30MPa |
|
Mainframe weight(T) |
About 24 tons |
|
Oil tank |
1600L |
|
Mainframe size |
About 9.8×1.6×1.9M（L×W×H） |
|
Bale Wire Line |
Manual tie with bags |
|
Control And Out-bale Way |
PLC Automatic Control, Push Bag |
|
Conveyor weight |
About 5 tons |
|
Conveyor size |
2000*12000MM |
|
Conveyor motor |
4KW |
|
Cool tower motor |
0.75KW（water Pump）+0.25（Fan） |
Why Choose NKB280-3
NKB280-3 (55kW) is the best choice for customers who demand maximum efficiency, flexible configuration, and heavy bale output. With customizable capacity and bale size, it adapts easily to different materials and logistics requirements. Combined with consistent 450kg+ bale weight, it helps customers achieve full container loading, reduce transportation costs, and maximize return on investment.
