Product Description

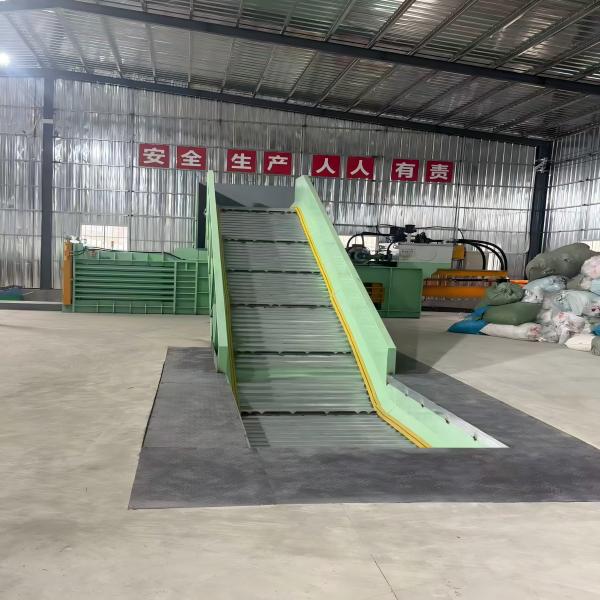

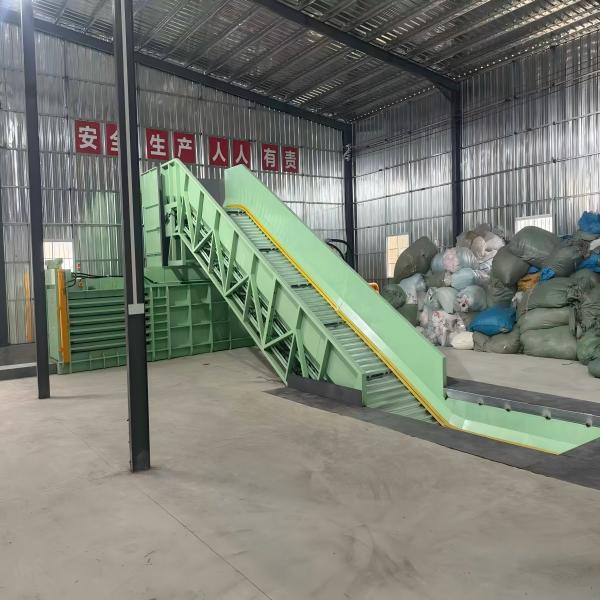

NKW200BD is engineered for high-capacity recycling plants requiring 200T compression force. It handles large volumes of recyclable materials and produces high-density bales suitable for export logistics.
Designed for continuous industrial operation, it ensures stable performance during extended working cycles. Its horizontal layout supports efficient material feeding and smooth bale discharge, significantly improving productivity and reducing handling and transportation costs.
Video
Key Features
●Extra-Large Horizontal Structure
Designed for maximum material throughput and ultra-strong compression force.
●Industrial-Grade Hydraulic System
Delivers stable pressure output and consistent high-density bales.
●Semi-Automatic Operation
Combines powerful performance with flexible and user-friendly control.
●Heavy-Duty Steel Construction
Built for long-term, continuous operation in harsh industrial environments.
●Wide Material Compatibility
Handles paper, cardboard, plastic film, PET bottles, and bulky recyclables with ease.
NKW200BD Specification
|
Model |
NKW200BD |
|
Hydraulic power |
200Ton |
|
Cylinder size |
Ø320-4300 |
|
Bale size（W*H*L） |
1100*1250*1700mm |
|
Feed opening size（L*W） |
2000*1100mm |
|
Bale density |
700-750Kg/m3 |
|
Capability |
9-12T/hour |
|
Bale line |
7 Line /Manual strapping |
|
Power/ |
45KW/60HP |
|
Out-bale way |
Disposable bag out |
|
Bale-wire |
6#/8#*7 PCS |
|
Machine weight |
26000KG |
|
Conveyor |
12000mm*2000mm (L*W) .4.5KW |
|
Conveyor Weight |
5000kg |
|
Cooling system |
Water cooling / oil chiller |
Why Choose NKW200BD
NKW200BD is the ideal choice for customers who demand maximum compression force, large-scale processing capacity, and proven industrial reliability. As the flagship semi-automatic model of the BD series, it offers powerful performance without the higher investment required for fully automatic systems, helping large recycling operations achieve higher efficiency and lower logistics costs.
