Baling machine for cardboard

Basic Information
Place of Origin: Wuxi ,China
Brand Name: NKBALER
Certification: CE,ISO
Model Number: NK5075T50
Minimum Order Quantity: 1
Packaging Details: Wooden case
Delivery Time: 10-30 days
Payment Terms: T/T
Supply Ability: 200-300 SETS PER YEAR

A cardboard baler is a piece of equipment specifically designed to compress waste cardboard into bundles of specified shapes and sizes. In the process of recycling waste cardboard, cardboard balers play a vital role. It compacts loose cardboard materials through efficient compression to facilitate transportation and storage, while also preparing for subsequent recycling.

Model NK5075T50
Hydraulic power 50Ton
Packaging size(L*W*H) 1500*750*700-1000 mm
Feed opening size(L*H) 1500*750mm
Capability 3-5/hour
Bale weight 350-500Kg
Voltage 380V/50HZ
Power 11KW/15HP
Machine size(L*W*H) 1850*1200*3300mm
Weight 2300Kg

Cardboard balers usually consist of compression device, conveying device, binding device and other parts. The compression device is responsible for compressing the cardboard into a tight block; the conveying device is used to send the compressed cardboard into the bundling area; the binding device uses plastic straps or other binding materials to bundle the compressed cardboard firmly to maintain its shape and structural stability.
The operation methods of cardboard balers include manual, semi-automatic and fully automatic types. Manual balers require operators to manually complete steps such as compression and bundling; semi-automatic balers partially implement mechanized operations, but still require manual assistance to complete certain links; fully automatic balers realize automated control of the entire process without manual intervention. Easy to operate and efficient.

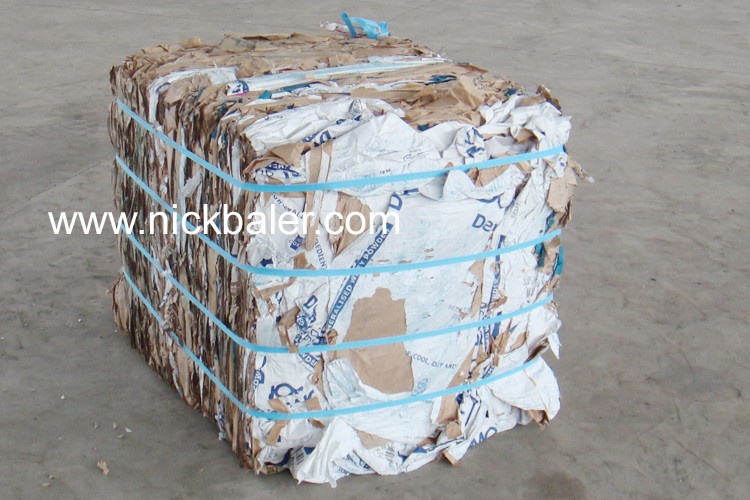

Baling machine for cardboard 0
In short, the cardboard baler plays an important role in the waste paper recycling industry. It not only improves the efficiency of waste paper processing, but also helps save resources and protect the environment.
