Control System: | PLC | Power Source: | Electric |
---|---|---|---|
Hydraulic: | Part Japan Brand In China | Application: | Waste Recycling, Packaging, Etc. |
Motor Power: | Customizable | Tubing: | Pipe China |
Loading Type: | Conveyor Belt | Seals: | America |
Quality: | Good | Bale Size: | Customizable |
Frequency: | 50Hz/60Hz | Colour: | Green |
Hydraulic Part: | Japan Brand In China | Bale Density: | 500-600kg/m3 |
Output: | 10-12tons/hour |

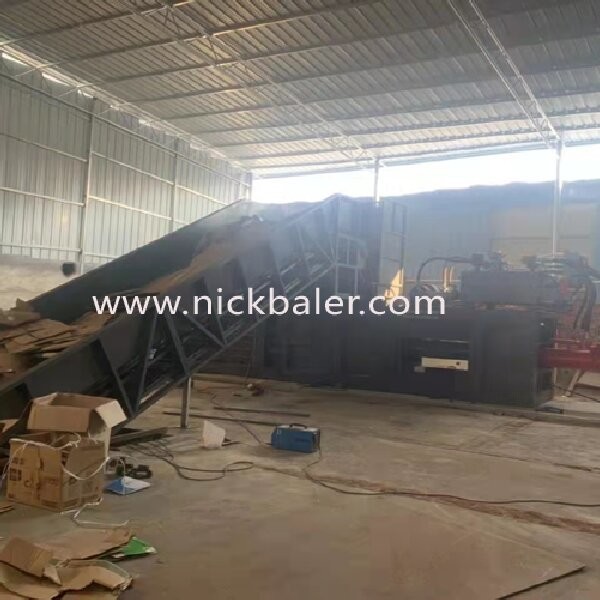

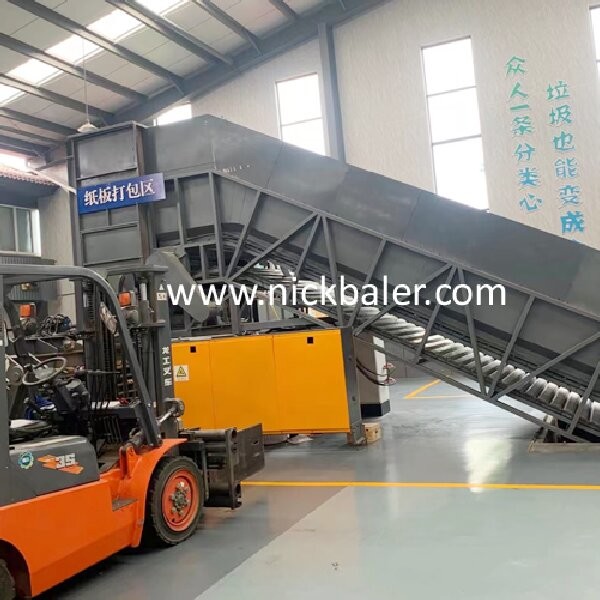

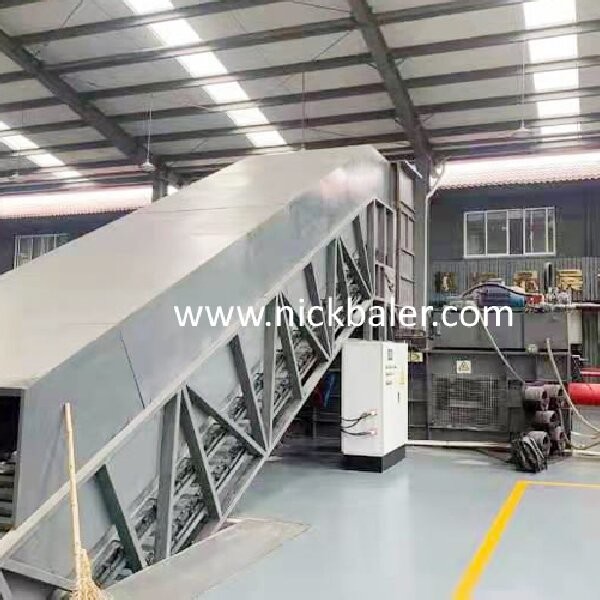

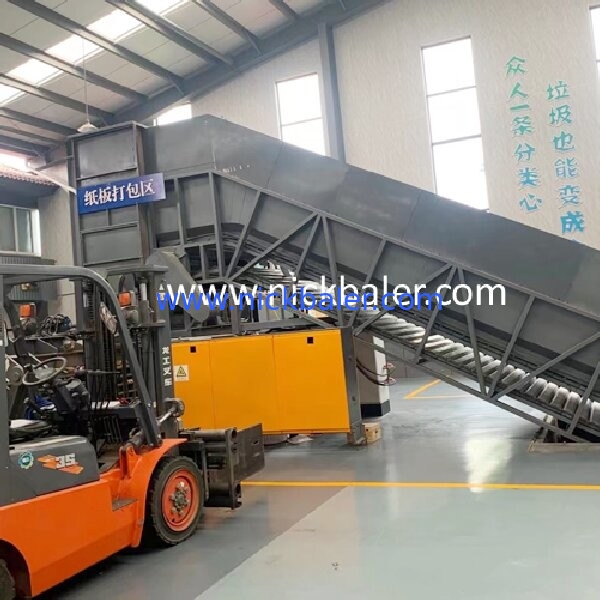

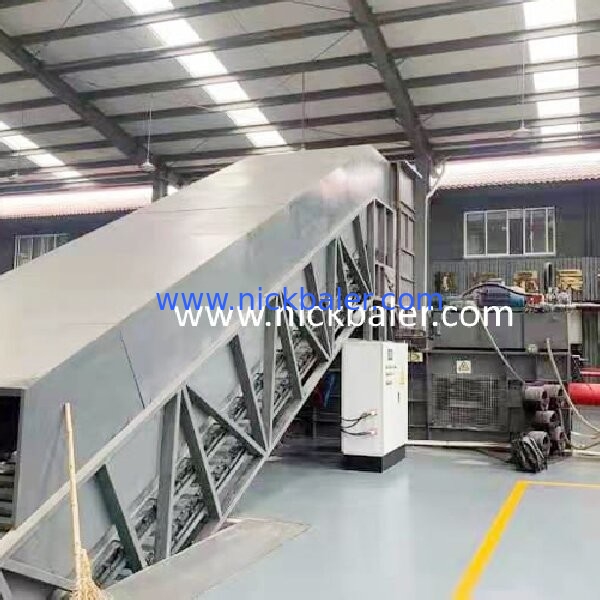

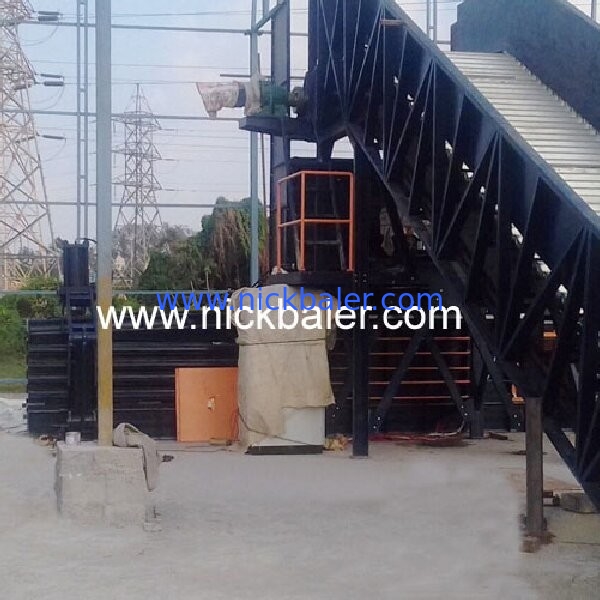

The NKW160Q Pet Bottle Automatic Tie Baler is an environmentally friendly equipment specially used for compressing and baling PET plastic bottles. This machine is suitable for recycling sites, processing plants and other places to effectively compress and bundle discarded PET bottles for easy transportation and reuse.
Item | Name | parameter |
mainframe parameter |
Bale size | 1100mm(W)×1100mm(H)×~1600mm(L) |
Material type |
Scrap Kraft paper, Newspaper, Cardboard ,Soft Film, |
|
Material density | 600~700Kg/m3(Mositure12-18%) | |
Feed opening size | 2400mm×1100mm | |
Main motor power | 45KW+15kw | |
Main cylinder | YG280/210-2900 | |
Capacity | 12-15 ton /hour | |
Main cylinder force | 160T | |
Max. system working force | 30.5MPa | |
Mainframe weight(T) | About 25 tons | |
Oil tank | 2m3 | |
Mainframe size | About 11×4.3×5.8M(L×W×H) | |
Tie wire line | 4 line φ3.0~φ3.2mm3 iron wire | |
Pressure time | ≤30S/ (go and back for empty load) | |
Chain conveyor technology | Model | NK-III |
Conveyor weight | About 7 tons | |
Conveyor size | 2000*14000MM | |
Conveyor motor | 7.5KW | |
Cool tower | Cool tower motor | 0.75KW(water Pump)+0.25(Fan) |
The NKW160Q Pet Bottle Automatic Tie Baler adopts advanced hydraulic system and automatic control technology to achieve high-efficiency baling operations. The working process is as follows: First, put the collected PET bottles into the hopper of the baler, and then send them into the compression chamber through the feeding device. In the compression chamber, the PET bottles are compressed into blocks through the action of hydraulic cylinders. Finally, the compressed PET bottles are bundled firmly through a bundling device to complete the packaging operation.
In addition, The NKW160Q Pet Bottle Automatic Tie Baler also has good operating performance and safety performance. The machine adopts fully automatic control, is simple and convenient to operate, and greatly reduces labor intensity. At the same time, the equipment is also equipped with multiple safety protection devices to ensure the safety of operators and equipment.
In short, The NKW160Q Pet Bottle Automatic Tie Baler is an efficient, practical and safe environmentally friendly equipment, which is of great significance for promoting the recycling of PET bottles and reducing environmental pollution.
