Operation Mode: | Automatic | Weight: | 3000kg |
---|---|---|---|
Machine Weight: | 6.5T | Bale Density: | 400-600kg/m3 |
Chain Conveyor Size: | 1200㎜(W)*12000㎜(L) | Safety Features: | Emergency Stop Button, Safety Door |
Material: | Waste Paper | Dimension: | 1600mm X 1200mm X 4000mm |
Bale Size: | 1100mm X 1100mm X 1200mm | Bale Strapping: | Four Sides |
Bale Weight: | 800-1000kg | Baling Force: | 30-200 Tons |
Installation: | Available | Strapping Method: | Cross Strapping |
Operation: | Automatic |

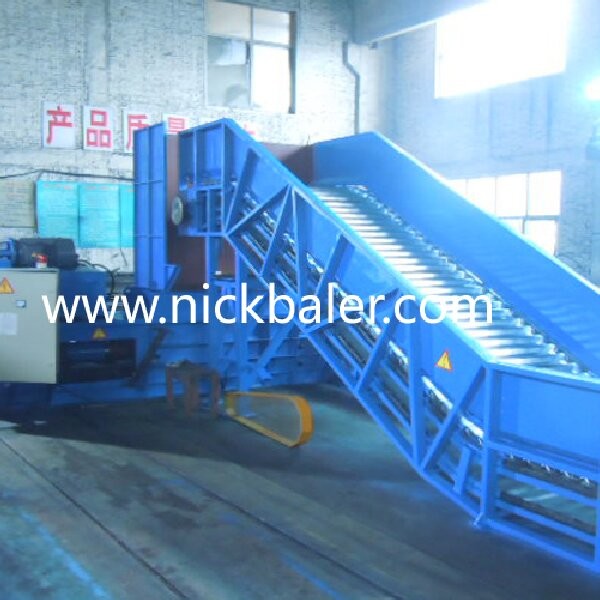

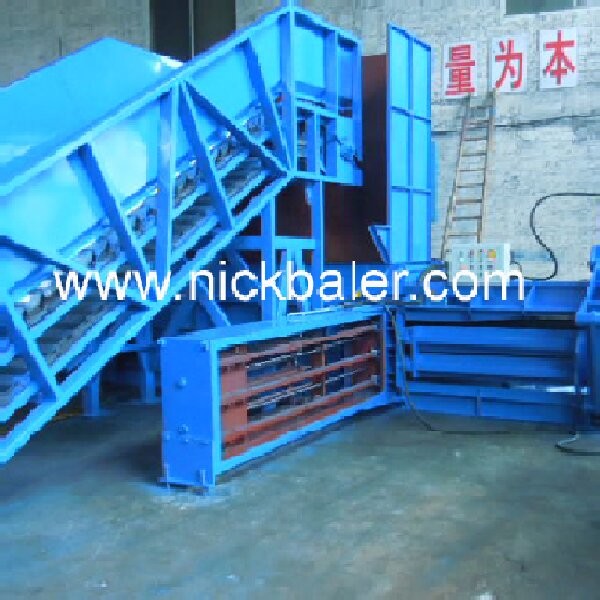

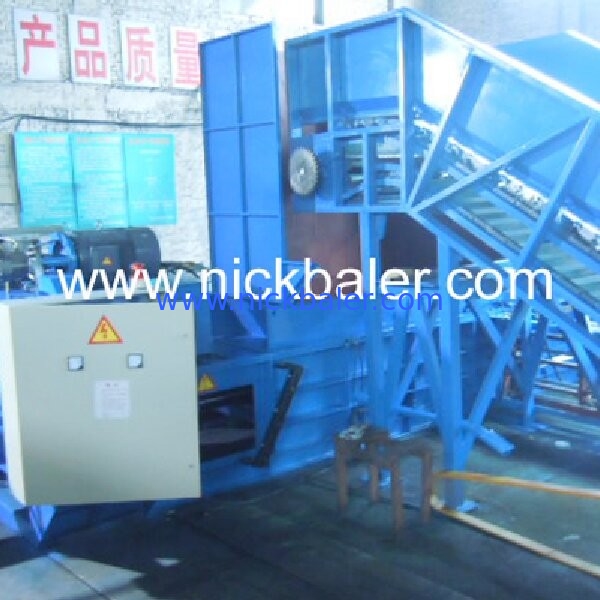

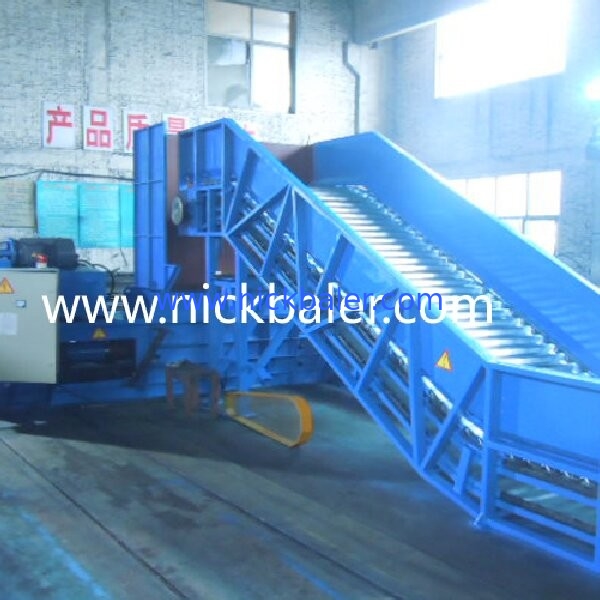

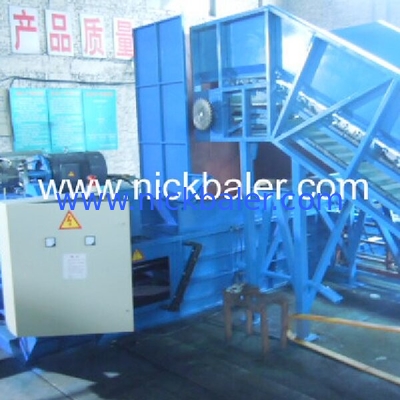

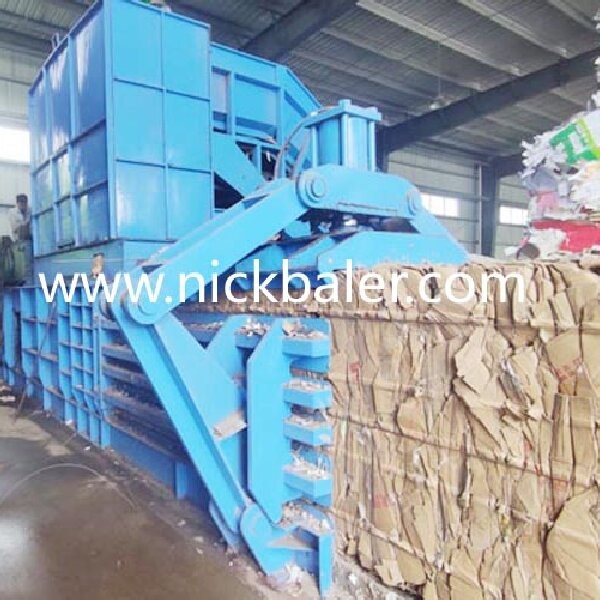

NKW220Q NewSpaper Reycling Baler is an efficient and environmentally friendly paper compression equipment that is mainly used for compression treatment of scrapped paper such as newspapers, magazines, carton. The machine uses advanced hydraulic technology, which can compress the waste paper into high -density blocks, which greatly reduces the volume of waste paper and facilitates transportation and treatment.
NKW220Q NewSpaper Reycling Baler has the characteristics of simple operation, high efficiency, and low energy consumption. It uses an automated control system to achieve automatic compression and automatic dispersion, which greatly improves work efficiency. At the same time, the machine also has the advantages of small noise and small vibration, and the operating environment is good.
In addition, NKW220Q Newspaper ReyCling Baler also has the characteristics of convenient maintenance and long service life. All its components are made of high -quality materials, which are wear -resistant and durable and low maintenance costs.
In general, NKW220Q NewSpaper Reycling Baler is an ideal waste paper compressed equipment, which is widely used in newspapers, printing plants, supermarkets, schools and other places.
Item | Name | parameter |
mainframe parameter |
Bale size | 1100mm(W)×1250mm(H)×~2200mm(L) |
Material type | OCC Newspaper, Cardboard ,Soft Film, Plastic, | |
Material density | 600~700Kg/m3(Moistures 12-18%) | |
Feed opening size | 2400mm×1100mm | |
Main motor power | 45KW×2sets | |
Main cylinder | YG350/220-2900 | |
Main cylinder force | 200T | |
Max working force | 30.5MPa | |
Mainframe weight(T) | About 35 tons | |
Capacity | 32-35 ton per hour | |
Oil tank | 2m3 | |
Mainframe size | About 11.5×4.8×5.8M(L×W×H) | |
Tie wire line | 5 line φ2.75~φ3.0mm3 iron wire | |
Pressure time | ≤35S/ (go and back for empty load) | |
Chain conveyor technology | Model | NK-III |
Conveyor weight | About 11 tons | |
Conveyor size | 2000*14000MM | |
terra hole size | 7.303M(L)×3.3M(W)×1.2M(deep) | |
Conveyor motor | 11KW | |
Cool tower | Cooling system | Oil Chiller +fan Cooler |
