Machine Size: | 12T | Tie Lines: | 4 Or 5 Lines |
---|---|---|---|
Operation: | Manual/Automatic | Operation Mode: | Automatic |
America: | America | Safety Features: | Emergency Stop Button, Safety Door |
Hydraulic Part: | Japan Brand In China | Material: | Waste Paper/Cardboard |
Control System: | PLC | Bale Size: | 1100*800*1200mm |
Operation Type: | Automatic | Capacity: | 1-2 Tons/hour |
Steel: | Bao Steel | Application: | Recycling Industry |
Bear: | NSK |

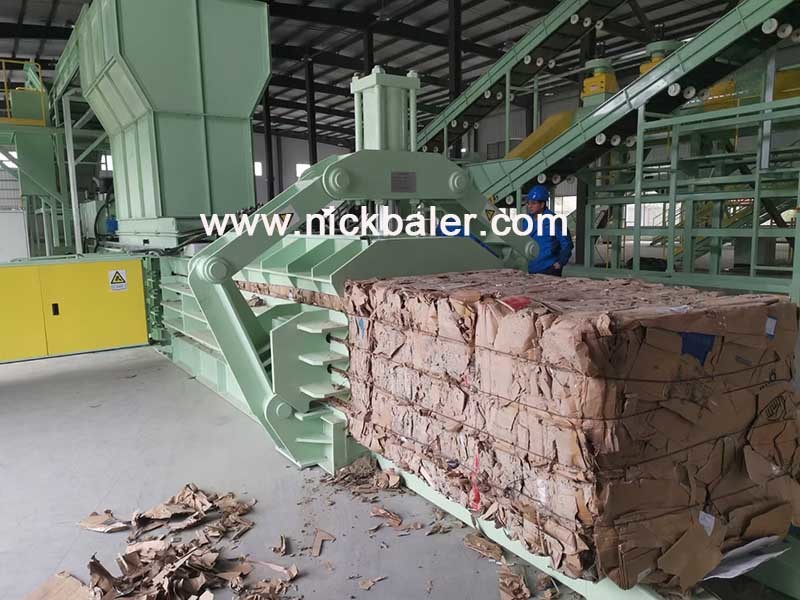

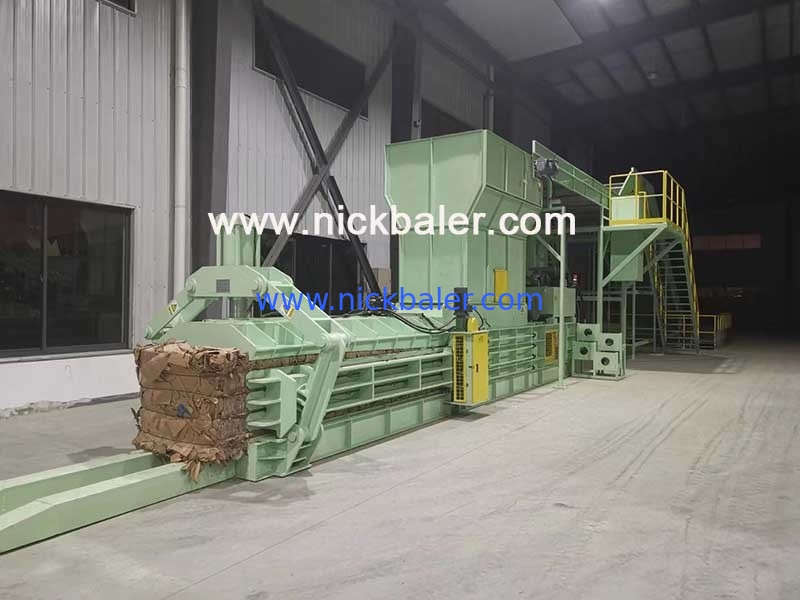

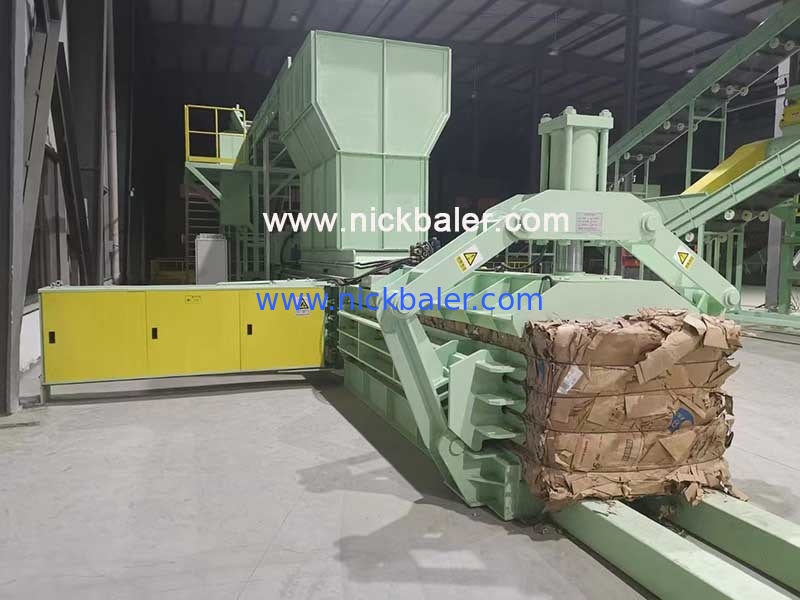

The NKW200Q is a high-efficiency,reliable waste paper processing equipment suitable for compressing and baling various materials such as waste paper,cardboard,plastic bottles,and PET film.This model features hydraulic drive and offers both manual and PLC automatic control operation modes.The discharge methods include flipping,pushing (side and front push),and manual package removal.This baler has several notable features.Firstly,it is equipped with an automatic bundling device that can quickly complete the baling process with stable operation and low failure rate.Secondly,its simple structure facilitates easy cleaning and maintenance.Additionally,the NKW200Q uses imported high-quality components to ensure the quality and durability of the equipment.In terms of technical parameters,the NKW200Q automatic waste paper baler provides a range of compression forces from 60 tons to 300 tons.The production efficiency can be customized according to customer needs,reaching up to 40 tons/hour.It also offers various options for bale size and weight,such as 1100*1100*1200mm and 1200-1600kg.Overall,the NKW200Q automatic waste paper baler stands out in the waste paper recycling industry due to its high efficiency,stability,and ease of maintenance.Whether for paper mills or recycling companies,this equipment can enhance waste paper processing efficiency,reduce transportation costs,and achieve a win-win situation for both economic and environmental benefits.
Item | Name | parameter |
Mainframe parameter |
Bale size | 1100mm(W)×1100mm(H)×~1800mm(L) |
Material type | Scrap Kraft paper, Newspaper, Cardboard ,Soft Film, Plastic, | |
Material density | 650~750Kg/m3(Moistures 12-18%) | |
Feed opening size | 2400mm×1100mm | |
Main motor power | 37KW×2sets+15KW | |
Main cylinder | YG300/230-2900 | |
Main cylinder force | 200T | |
Capacity | 28-30Ton/hour | |
Max. system working force | 30.5MPa | |
Mainframe weight(T) | About 30 tons | |
Oil tank | 2m3 | |
Mainframe size | About 11×4.3×5.8M(L×W×H) | |
Tie wire line | 4 line φ3.0-3.2mm3 iron wire | |
Pressure time | ≤30S/ (go and back for empty load) | |
Chain conveyor technology Model NK-III |
Model | NK-III |
Conveyor weight | About 7 tons | |
Conveyor size | 2000*14000MM | |
terra hole size | 7.303M(L)×3.3M(W)×1.2M(deep) | |
Conveyor motor | 7.5KW | |
Cool tower | Cool tower motor | 0.75KW(water Pump)+0.25(Fan) |
