NKW120Q Waste Paper Baler,Waste Paper Automatic Horizontal Baling Press

Basic Information
Place of Origin: Wuxi ,China
Brand Name: NKBALER
Certification: CE,ISO
Model Number: NK Series
Minimum Order Quantity: 1 sets
Price: USD 2800-280000
Packaging Details: Wooden case
Delivery Time: 10-30 days
Payment Terms: TT/LC
Supply Ability: 200-300 SETS PER YEAR
PLC System: Mitsubishi Bale Size: 1100mm(W)×1100mm(H)×~1600mm(L)
Tie Wire Line: 4 Line φ2.75~φ3.0mm3 Iron Wire Conveyor Size: 1800*12000MM

Parts of machine Mainly Body

PLC system Mitsubishi
Bear NSK
Seals America
Cylinder China
Motor Siemens
Pump Taiwan ,China
Steel Bao Steel
Valve Shanghai ,china
Hydraulic Part Japan brand in China
Electrical components Schneider
Tubing /pipe China



Usage :

Specialized in recycling and compressing the loose materials like plastic films ,PET bottles, plastic pallets ,waste paper ,grass ,fiber ,used clothes ,cartons ,cardboards trims ,scrap ,etc .

Features

● Photoelectric switch activates baler when charge box is full

● Fully automatic compress and baling, suitable for large amount material places, after baling it is easy store and reduce the transportation cost.

● Unique automatic strapping device, speed quickly ,frame simple, motion steady. Failure rate is low and easy to clean maintenance.

● Can choose transmission line materials and air-blower Feeding. Suitable to waste cardboard recycling companies, plastic, fabric large garbage disposal sites and so on.

● Adjustable bales length and bales quantity accumulating function make the operation of the machine more convenient

●  Automatically detect and show the errors of the machine which improve the machine inspection efficiency

●  International standard electric circuit layout, graphic operation instruction and detailed parts marks makes the operation been more easily understanding and improves the maintenance efficiency

NKW120Q

Item Name Parameter

mainframe

parameter

Bale size 1100mm(W)×1100mm(H)×~1600mm(L)
Material type Fiber Scrap Kraft paper, Carton, Cardboard ,Soft Film,
Material density 500~600Kg/m3(Moisture12-15%)
Feed opening size 2000mm×1100mm
Output 9-12tons/hour
Main motor power 37.5KW×2set
Capacity 12-15Ton
Main cylinder YG220/160-2600
Main cylinder force 120T
Max. system working force 21MPa
Mainframe weight(T) About 21 tons
Mainframe size About 11×2.3×2.9M(L×W×H)
Tie wire line 4 line φ2.75~φ3.0mm3 iron wire
Pressure time ≤30S/ (go and back)
Model NK-III
Conveyor weight About 7 tons

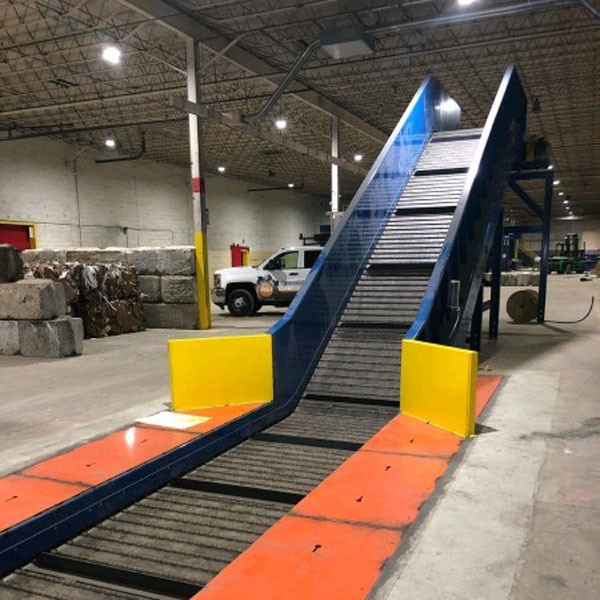

Conveyor size 1800*12000MM
Conveyor motor 7.5KW
Cool tower motor 0.75KW(water Pump)+0.25(Fan)
