Product Description

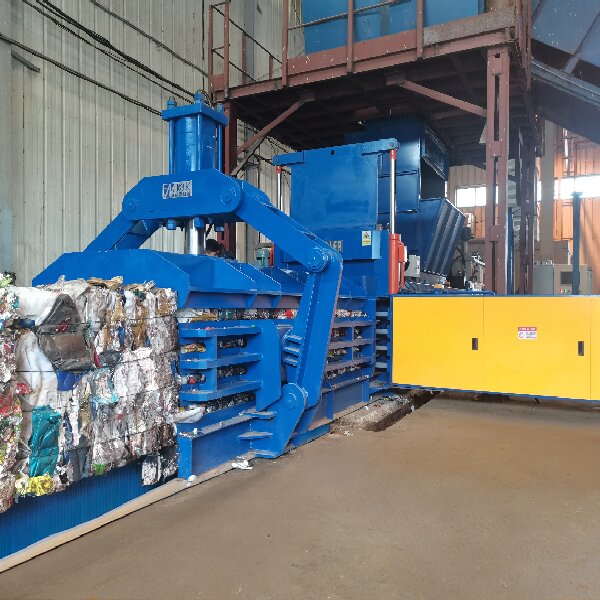

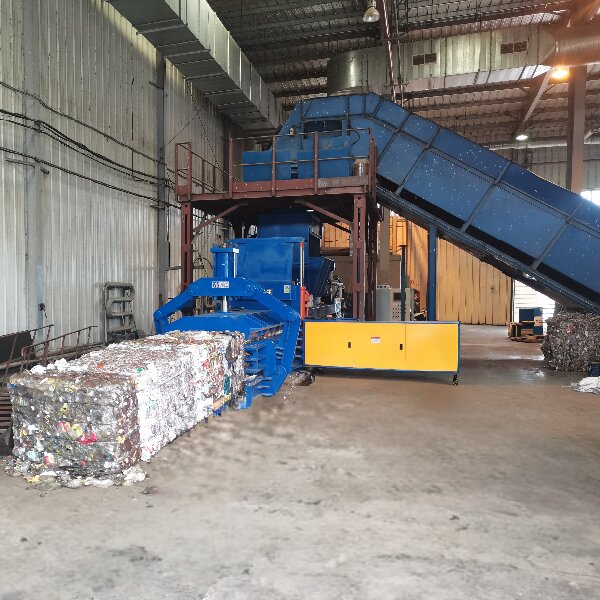

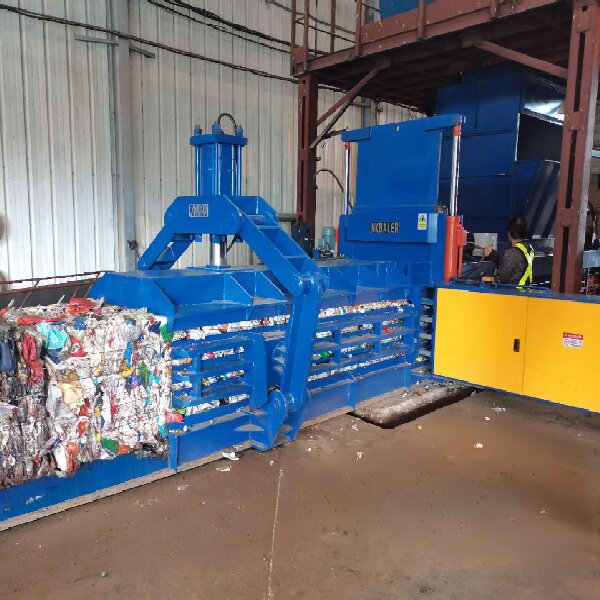

NKW100QT is a horizontal baler equipped with an automatic tying system and a lifting door design, built specifically to streamline the baling process for mid-sized recycling and industrial operations. Automatic tying guarantees consistent, secure bale binding, cutting down manual work and boosting operational efficiency.
Meanwhile, the lifting door enables easier material loading and smooth bale ejection, making the machine ideal for facilities that handle bulky or irregular materials. Its reinforced frame and stable hydraulic system ensure steady compression force and uniform bale density, even during non-stop runs.
Video
Key Features
●Low Noise & Energy Efficient Servo Drive
The servo system runs smoothly with minimal vibration and reduces energy usage, saving up to 50% on electricity compared to older systems.
●Fully Automatic Compression & Baling
The system automatically compresses and bales materials, making it easier to store and transport, lowering logistics costs.
●High-Speed Automatic Strapping
A fast and simple automatic strapping system with low failure rates that’s easy to clean and maintain.
●Flexible Feeding Options
It supports both conveyor and air-blower feeding, ideal for recycling plants dealing with cardboard, plastics, textiles, or large waste disposal.
●Automatic Fault Detection
The system automatically identifies faults and displays them, reducing downtime and improving inspection.
●International Electrical Control
The electrical system follows international standards, with clear instructions and markings for easier operation and maintenance.
NKW100QT Specification
|
Name |
parameter |
|
Bale size |
1100mm（W）×850mm（H）×1200mm(L) |
|
Material type |
Cardboard, Soft Film, PET Bottle |
|
Material density |
400～500Kg/m3（moisture 12-15%） |
|
Feed opening size |
1800mm×1000mm |
|
Output |
4-6tons/hour |
|
Main motor power |
30KW+7.5kw |
|
Main cylinder |
YG220/160-4500 |
|
Main cylinder force |
100T |
|
Max. Pressure |
21MPa |
|
Mainframe weight(T) |
About 20 tons |
|
Mainframe size |
About 13×2.3×2.9M（L×W×H） |
|
Tie wire line |
4 line φ2.75～φ3.0mm3 iron wire |
|
Pressure time |
≤30S/ (go and back) |
|
Conveyor weight |
About 5 tons |
|
Conveyor size |
2000*12000MM |
|
terra hole size |
7.303M（L）×3.3M（W）×1.2M（deep） |
|
Conveyor motor |
5.5KW |
Why Choose NKW100QT
NKW100QT is an ideal choice for customers who require automatic tying combined with flexible feeding and discharge. With its lifting door design, stable performance, and reliable automation, it enhances operational efficiency while maintaining consistent bale quality in demanding industrial environments.
