Product Description

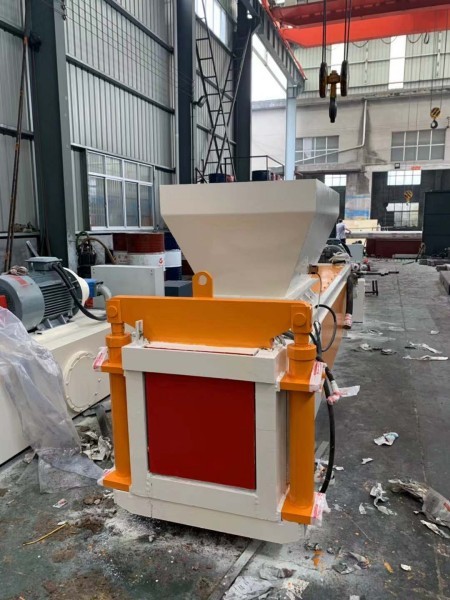

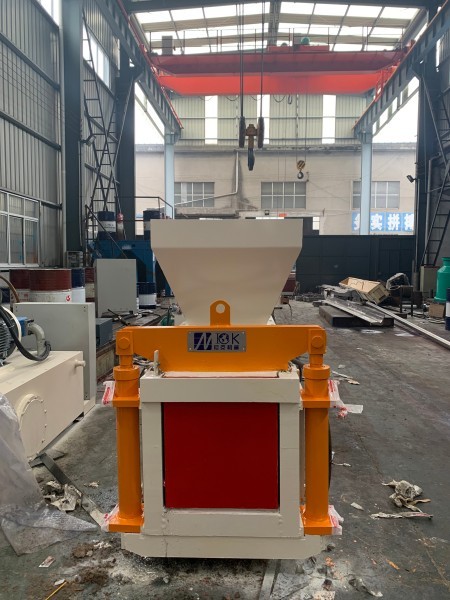

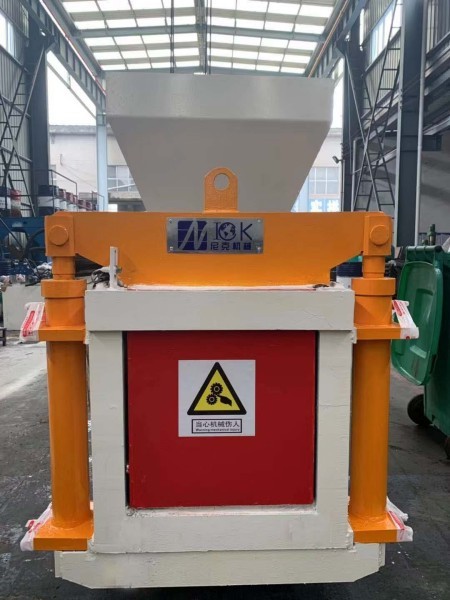

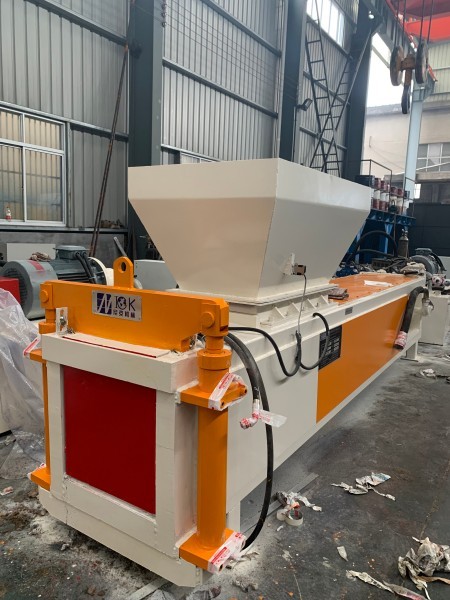

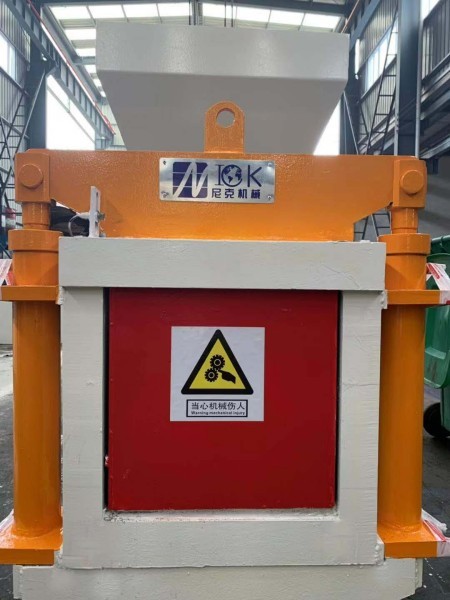

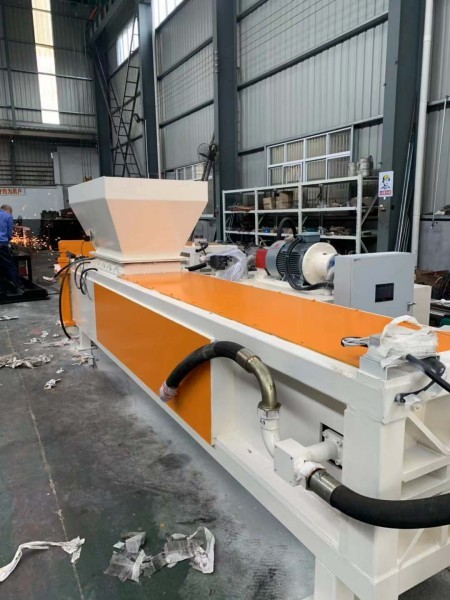

NKB250 Sawdust Baler Machine is suitable for compressing sawdust, wood chips, rice husks, peanut shells, corner wood waste, and other loose biomass materials. Through powerful hydraulic block compression, scattered materials are formed into dense and solid blocks that can be handled and transported directly without bags. The compressed blocks are moisture-resistant, easy to store, and convenient for secondary use such as making compressed boards, particle boards, plywood, and other wood-based panels.
Equipped with a PLC control system, the NKB250 supports horizontal continuous block discharge with fast working speed and high efficiency. The machine can be operated with manual feeding or an automatic feeding conveyor, offering flexible operation modes. With high automation level, strong compression force, low power consumption, and reliable performance, the NKB250 is an ideal solution for high-output sawdust and wood waste block forming.
Video
Key Features
●250-Ton Hydraulic Compression
Powerful hydraulic system delivers high-density sawdust blocks with stable and reliable performance.
●PLC Automatic Control
PLC control enables automatic compression and block discharge with simple and user-friendly operation.
●No Bag Required
Compressed sawdust blocks are solid and stable, allowing direct handling, stacking, and transportation.
●High Output Capacity
Designed for medium to large-scale operations with high efficiency and continuous working capability.
●Wide Material Applicability
Suitable for sawdust, wood shavings, rice husk, cotton seed, shell husk, and other biomass materials.
NKB250 Specification
|
Hydraulic power |
250Ton |
|
Control system |
Servo system control |
|
Motor |
Siemens |
|
Bale capacity |
4-6 T/H |
|
Packaging size（L*W*H） |
600*2400mm |
|
Cylinder size（L*H） |
350*4300mm |
|
Moisture |
<=50% |
|
Power |
45KW+7.5KW |
|
Diameter(mm) |
600(D)*500-1000(L) |
|
Weight |
16000Kg |
Why Choose NKB250
NKB250 Sawdust Baler Machine is designed for users who require higher output and stronger compression for large volumes of sawdust. With its robust hydraulic system, PLC automation, and bag-free block forming design, it provides an efficient and cost-effective solution for sawdust storage, transportation, and recycling.
